| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Junqi |
| प्रमाणन: | CE,ROHS, UL |
| मॉडल संख्या: | JP400S-24V |
| न्यूनतम आदेश मात्रा: | 2 पीसी |
|---|---|
| मूल्य: | USD180~usd200/pc (Negotiable) |
| पैकेजिंग विवरण: | निर्यात के लिए सुइट |
| प्रसव के समय: | जैसा कि पुष्टि की गई है |
| भुगतान शर्तें: | टी/टी, पेपैल |
| आपूर्ति की क्षमता: | 1000 पीसी/माह |

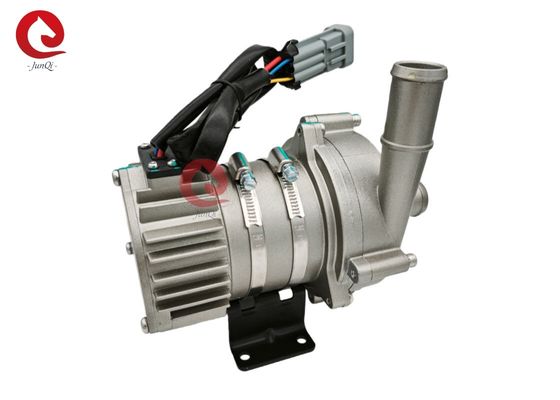

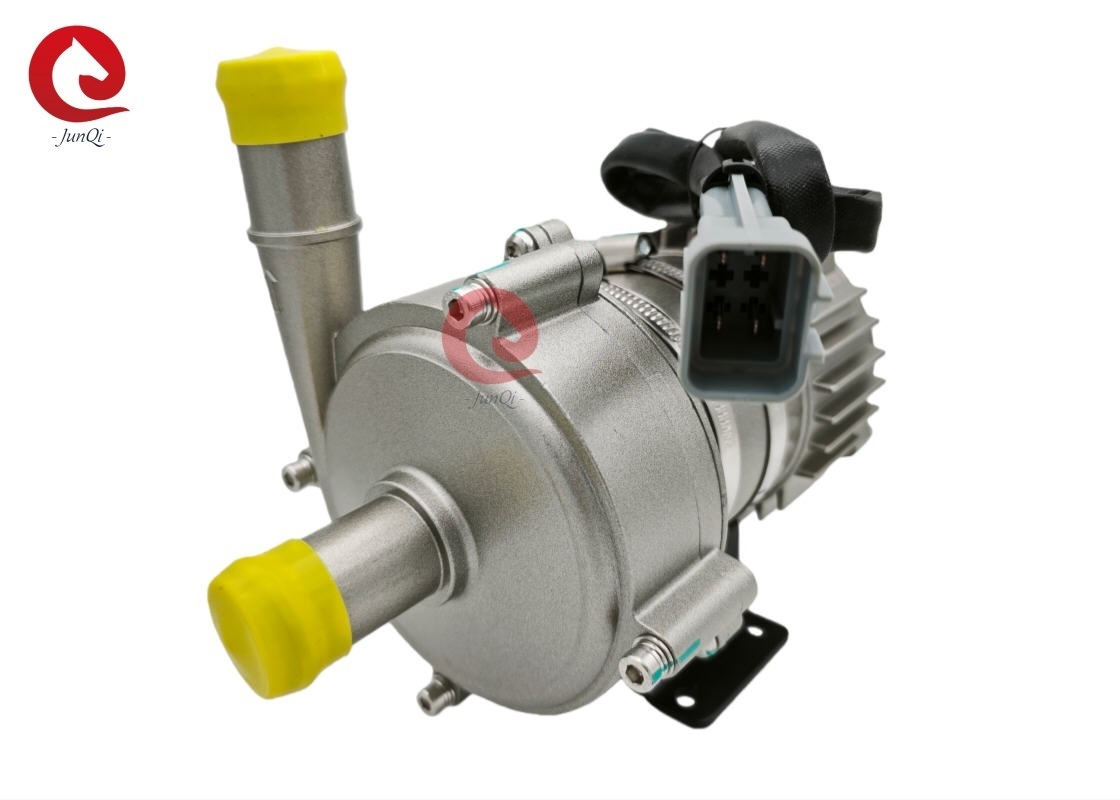

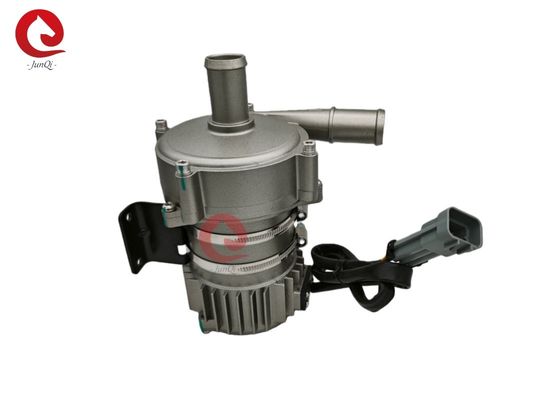

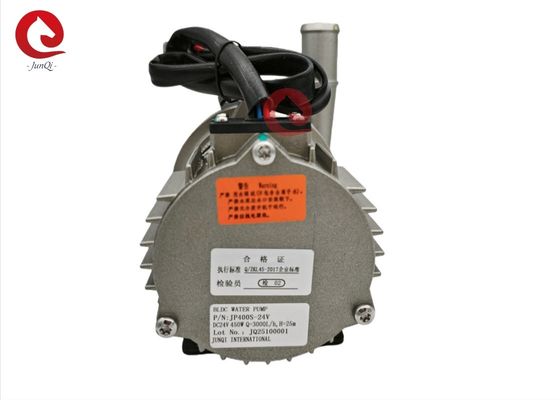

| प्रोडक्ट का नाम: | इलेक्ट्रॉनिक शीतलक पानी पंप | नमूना: | JP400S-24V |
|---|---|---|---|
| कार्यशील वोल्टेज: | 18~32वीडीसी | मूल्यांकित प्रवाह: | 3000L/h |
| नामित लिफ्ट: | 25 मीटर | मूल्यांकित शक्ति: | 450W |
| आउटलेट/इनलेट: | 25 मिमी | आवेदन: | ईइलेक्ट्रिक कार, इलेक्ट्रिक बस, इलेक्ट्रिक ट्रक, ईंधन सेल कूलिंग, कॉमेरिकल वाहन बैटरी |
Water Pump features:
♦ Positive and negative electrode misconnection protection function;
♦ Soft start protection, small starting current;
♦ DC brushless motor high reliability, low thermal power, motor efficiency up to 90% energy saving better;
♦ Low noise, long service life.
Technical Parameters:
| JP400S-24V | |
| Item | Description |
| Rated Voltage | DC24V |
| Rated Currrent | ≤20A |
| Operating voltage | DC18-32V |
| Rated Power | 450W |
| Working Environment | -40~85℃ |
| Working Medium | 50% glycol aqueous solution |
| Protection level | IP68 |
| Working noise | ≤60dB ( Distance 1m) |
| Working life | ≥20000h |
| Weight | 2.8kg |
| Protection function | Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling. |
Working Performance curve:
Dimensions:
Application:
Commerical Vehicle Battery Energy Storage Battery Vehicle Thermal Management Data Center
Thermal Management Liquid Thermal Management Liquid System
Cooling Systme Cooling System
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet customized .
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
